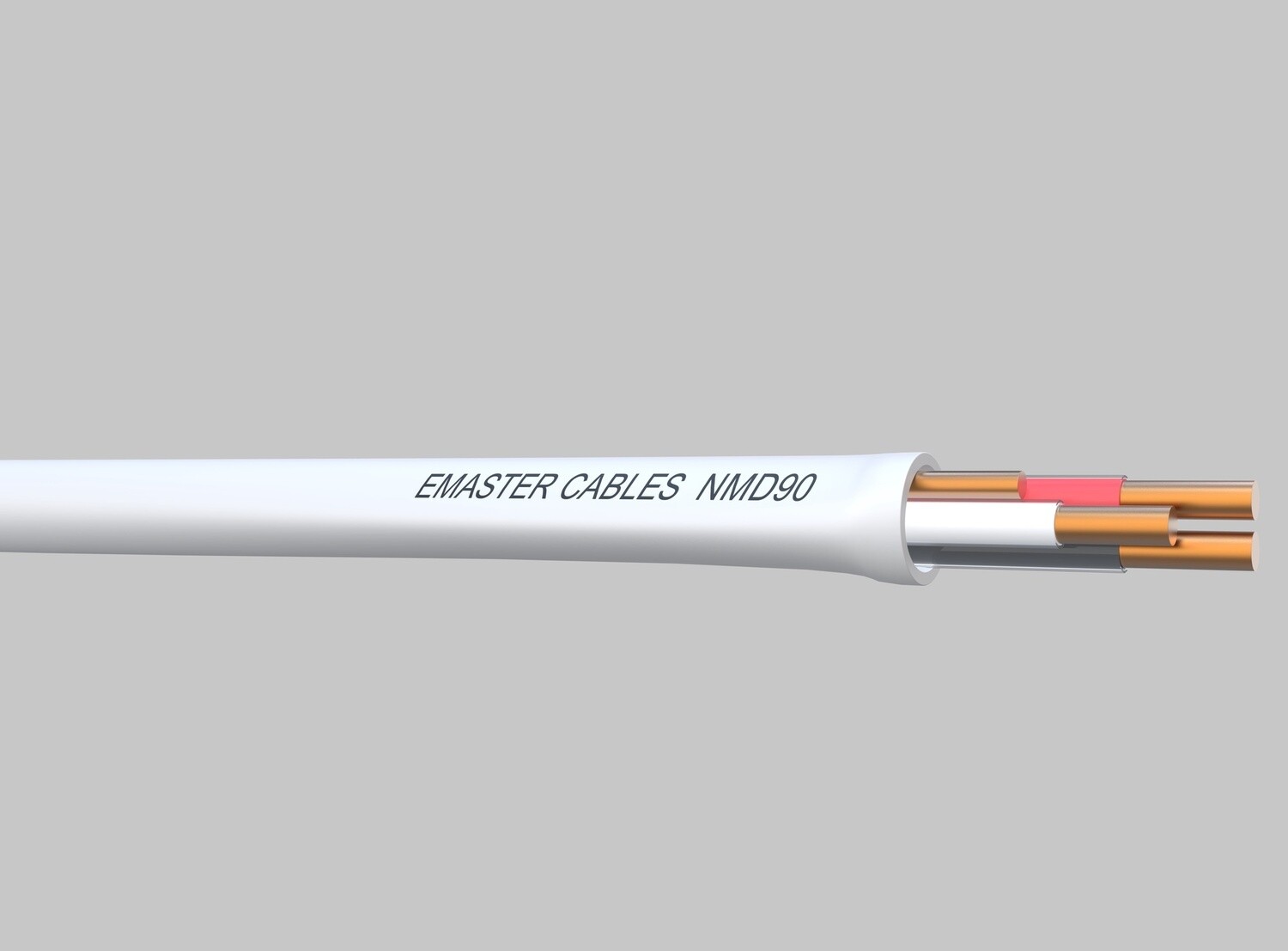

NMD90 300V CU 6/3C WHITE 1M
SKU MPC101063001003
$14.00
In stock
1
Product Details
Brand: MYSTIC POWER CABLES
| Wire Gauge Size | 6 AWG | Number of Conductors | 3 |
| Stranded/Solid | Stranded | Number of Strands | 7 |
| Length | 1 m | Conductor Material | Copper |
| Insulation Material | PVC/Nylon | Jacket Material | PVC |
| Voltage Rating | 300 V | Outside Diameter | 0.695 in |
| Insulation Thickness | 0.051 in | Jacket Thickness | 0.045 in |
| Amperage Rating | 75 A | Weight per 1000 Foot | 421 lb |
| Temperature Rating | -40 to 90 °C | Standards | ASTM, CSA C22.2 No. 48 (Non-Metallic Sheathed Cable), Canadian Electrical Code |
| Application | For Both Exposed Work In Dry Locations or Concealed Work In Dry or Damp Locations |
