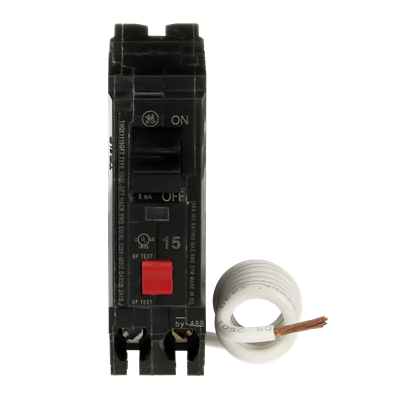

THQL1115GFT 1P 15A 120V GFCI SELF TEST BREAKER
SKU ABBTHQL1115GFT
$118.00
In stock
1
Product Details
Brand: ABB
Descriptors
|
Category |
Ground Fault |
|
Product Line |
Q-Line (Plug-In) |
|
GO Schedule |
R9 |
Specifications
|
Interrupting Capacity Rating |
10 kAIC |
|
Voltage |
120/240 VAC |
|
Trip Style |
Non-Interchangeable |
|
Frame Type |
Q-Line |
|
Amperage |
15 A |
|
System Voltage |
120 VAC, 120/240 VAC |
|
Poles |
1 |
|
Trip Function |
LIG |
|
Continuous Current Rated |
Standard |
|
120/240 Vac Interrupting Rating |
10 kAIC |
|
Suitable for Reverse Feed |
Yes |
|
Wire Range (Cu/Al) |
14–8 AWG Cu / 12–8 AWG Al |
|
Long Time |
Fixed |
|
Instantaneous |
Fixed |
|
Protective Relays |
No |
|
Current Metering |
No |
|
Special Markings |
HACR, SWD |
Classifications
|
UL File # |
E11592 |
